SWAM® Model CCR-MAX-MV2L

SWAM® Model CCR-MAX-MV2L

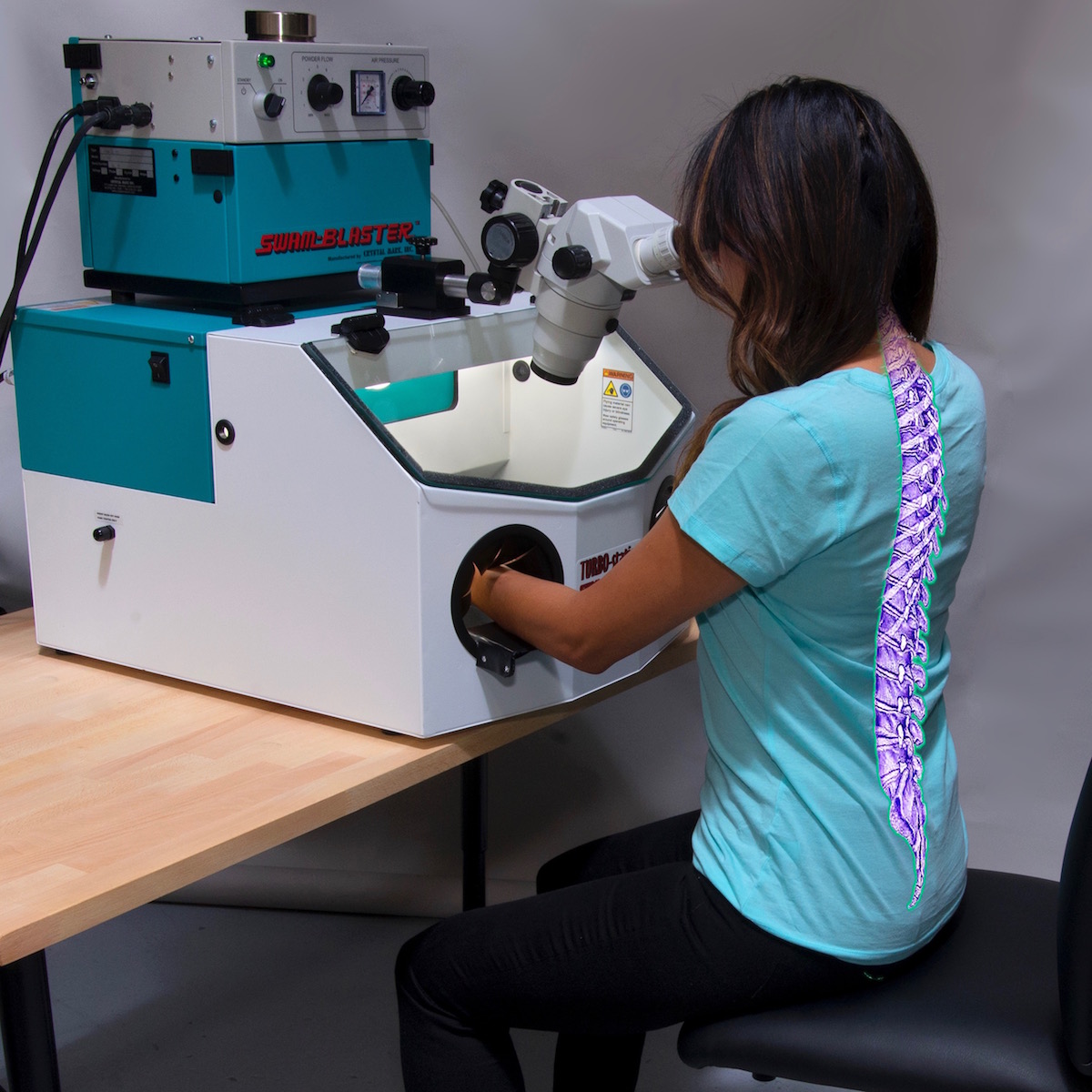

Crystal Mark new Turbo-Max CCR Table Top Conformal Coating Removal System incorporates Crystal Mark’s MV-2L Micro Abrasive Blaster, Ionized Ergonomic Work Chamber, Point Ionizer at Nozzle, along with a compact Filter System. The all-in-one workstation fits on most benches and is designed to safely and selectively remove conformal coatings, whether from a pinpoint area to an entire circuit card assembly. When used with Carbo Blast™ abrasive powder, conformal coatings can be removed without causing mechanical or ESD damage.



Removes: Parylene, Silicones, Urethanes, Epoxies, Acrylics and Much More.



  • Ionized Ergonomic Work Chamber and grounded work surface provide exceptional ESD protection.
  • Use UV fluorescent light to allow for easy identification of residual conformal coating.
  • Flip switch to white fluorescent bulb to allow for normal viewing of removal process.
Chamber Interior: 24” wide, 17” high x 19” deep Blower Motor: 100 watts
Power: 115V/60Hz, 1 phase, 2 amps Other Power: 100V/50 Hz, 110v/60 Hz & 230V/50/60Hz
