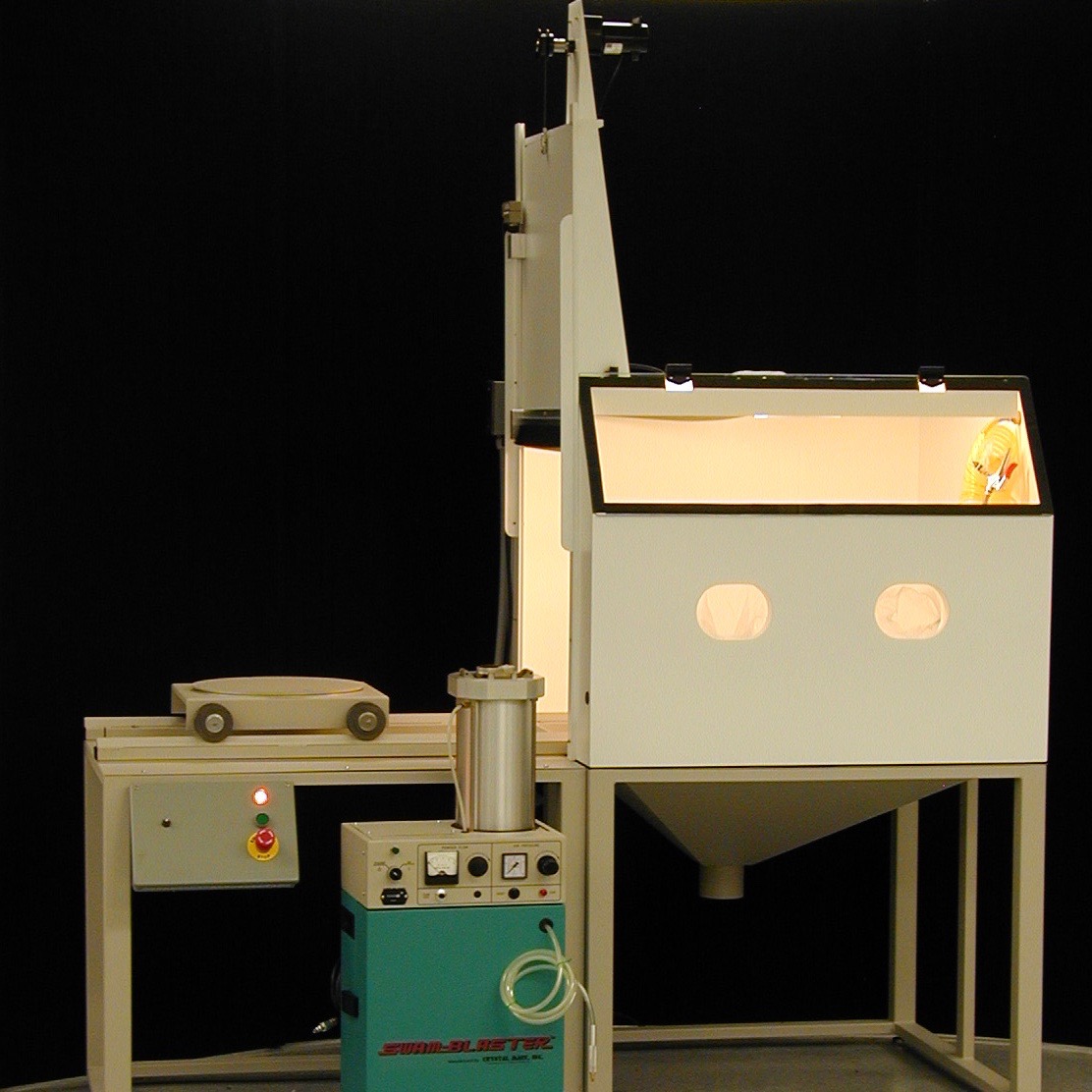

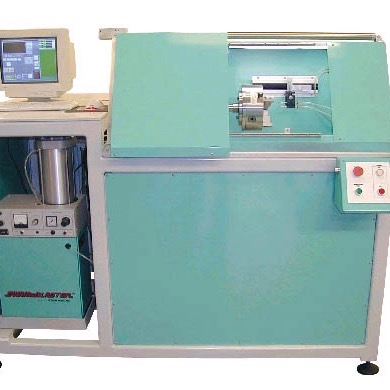

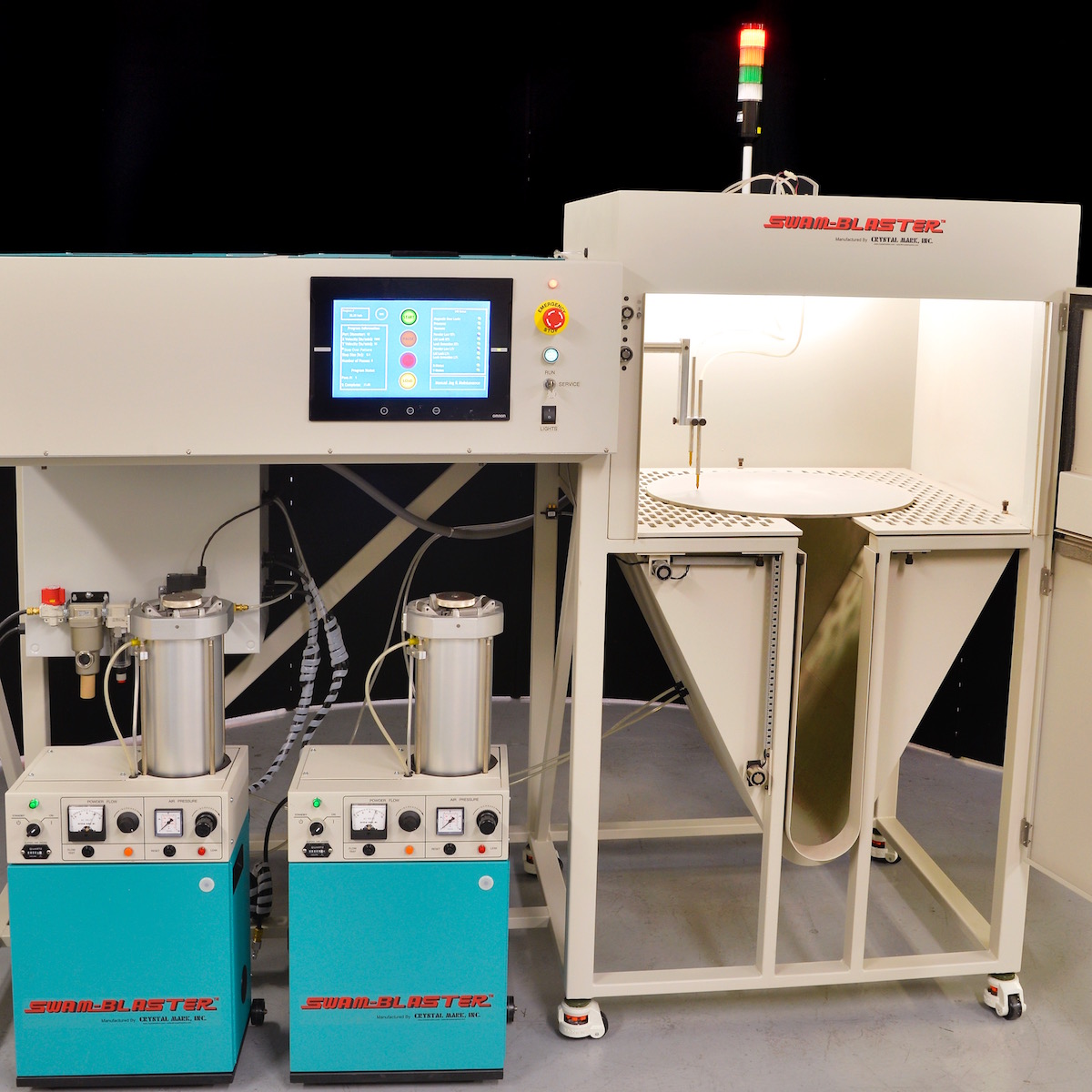

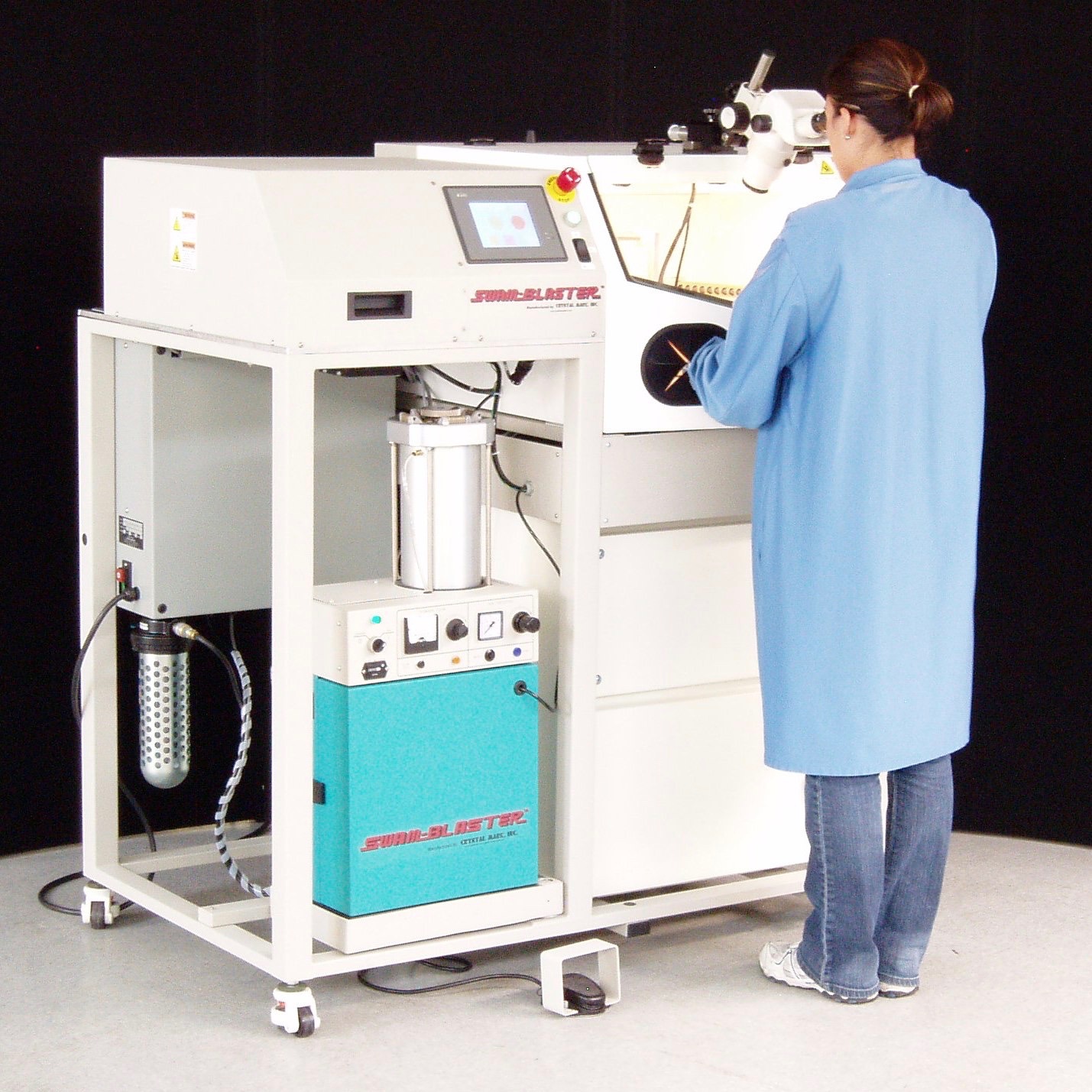

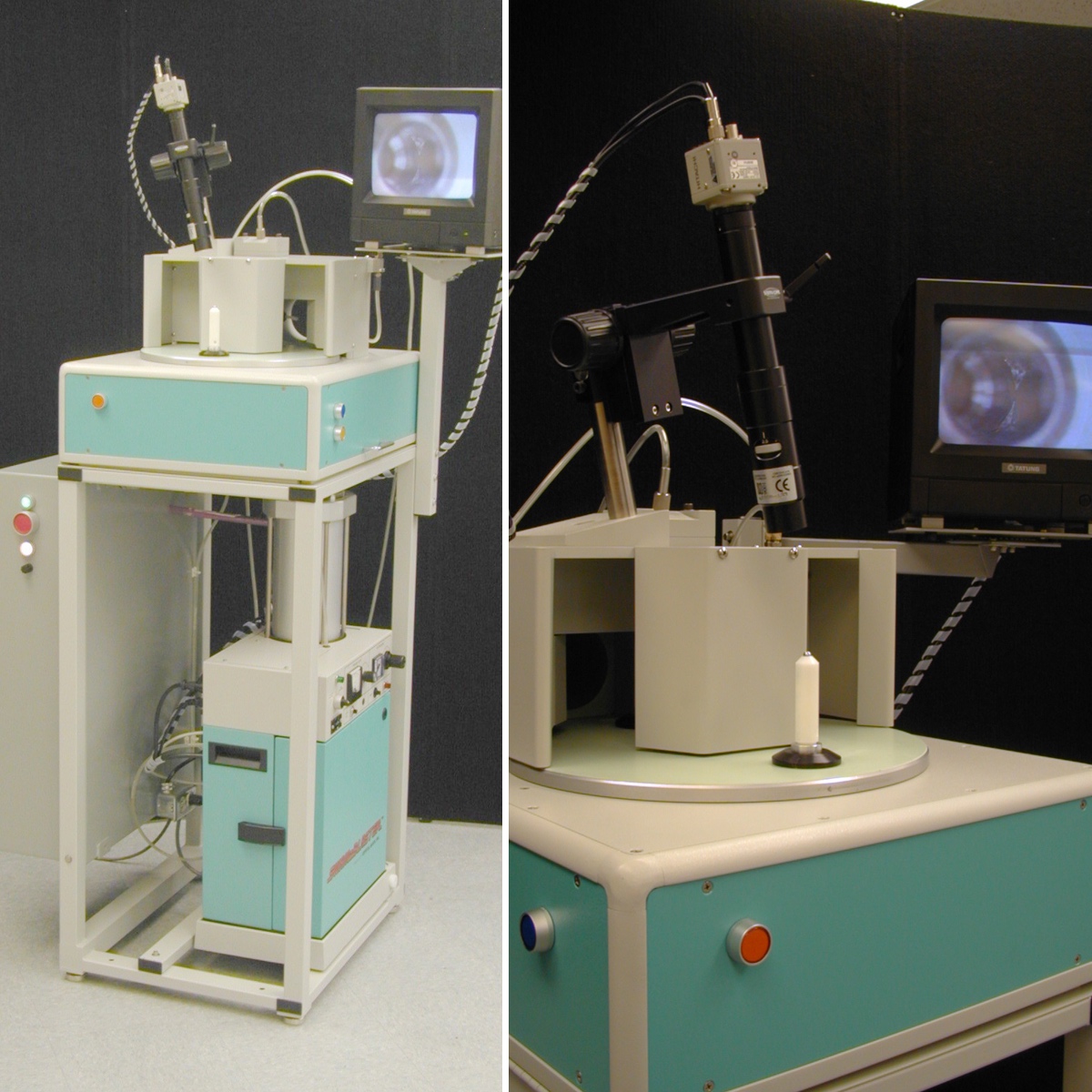

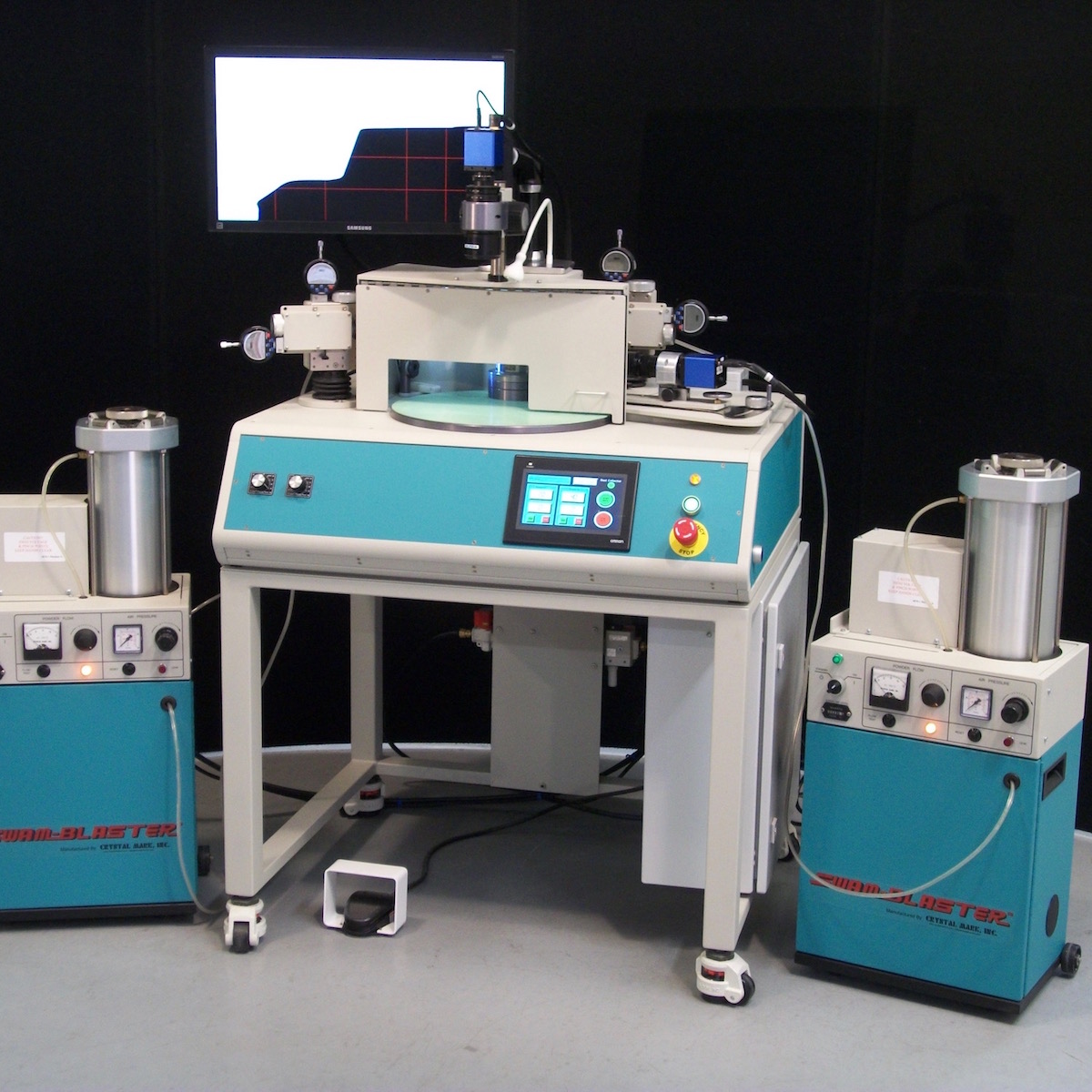

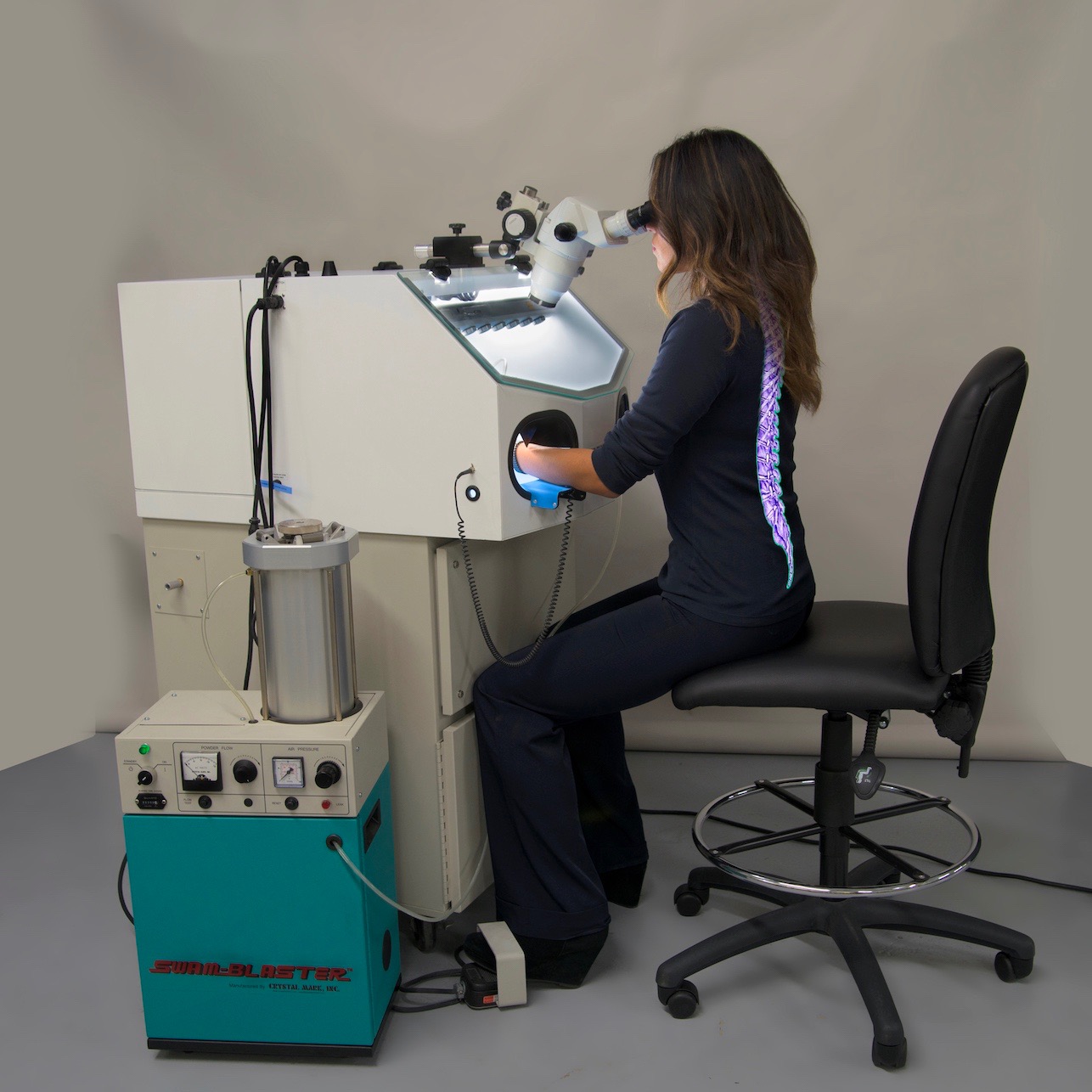

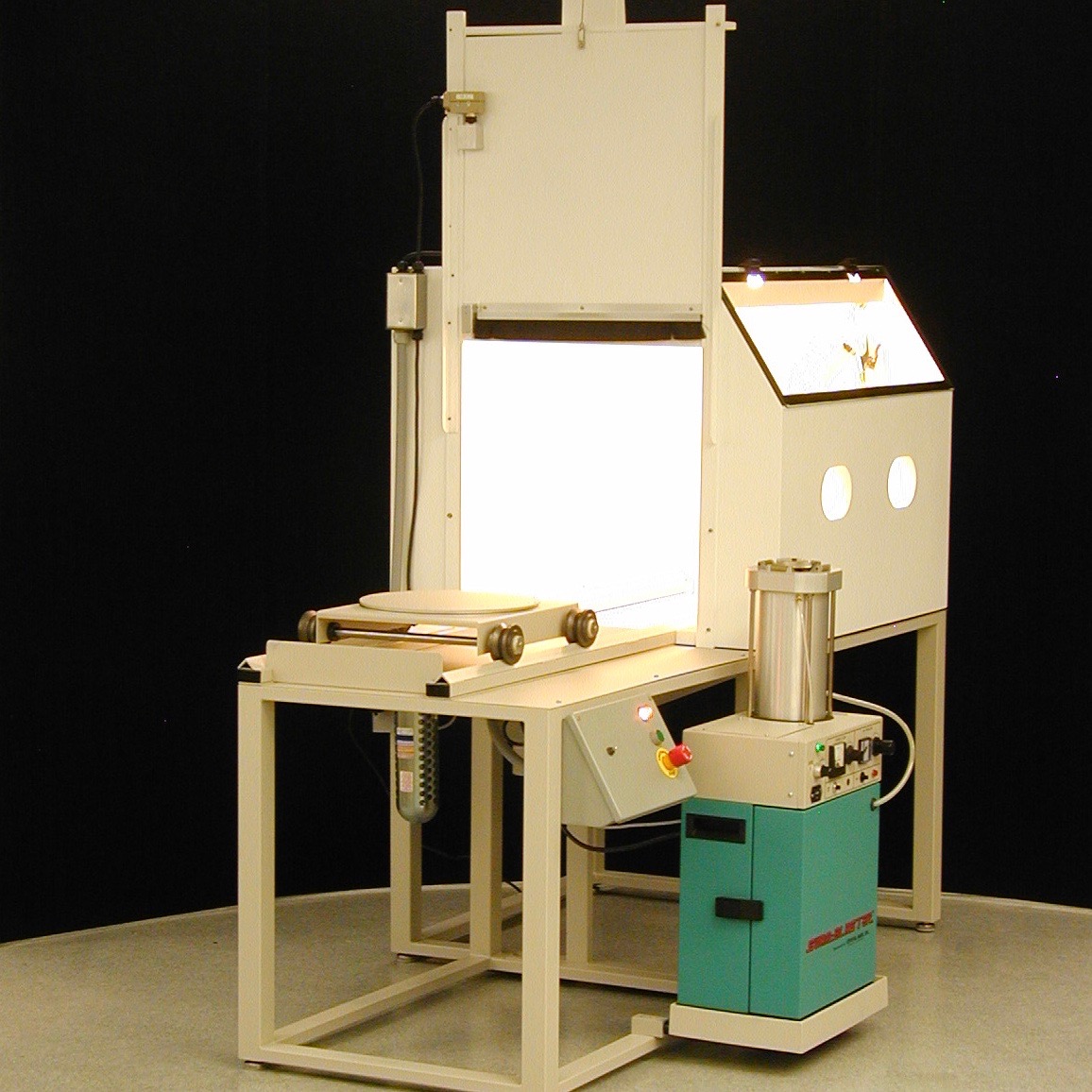

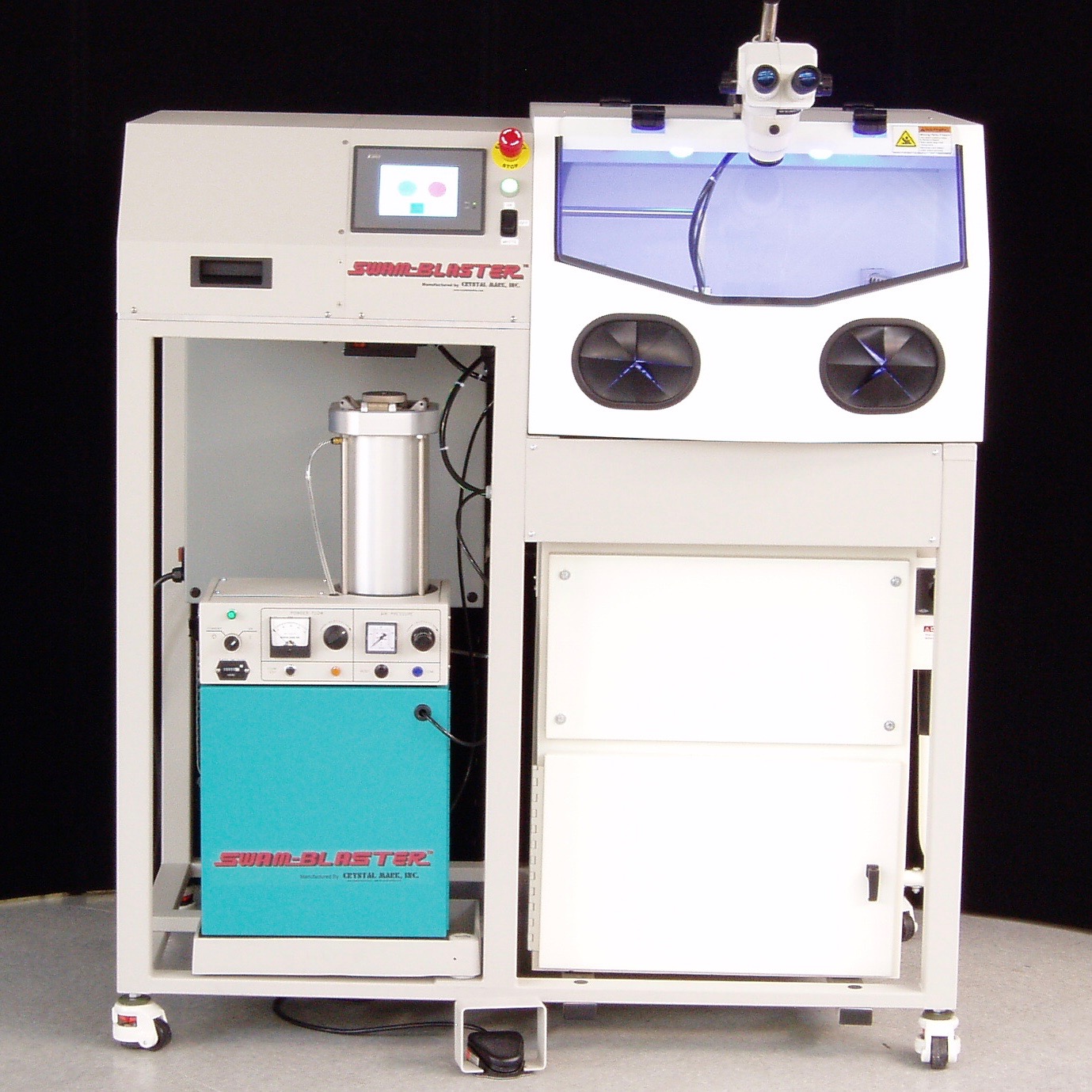

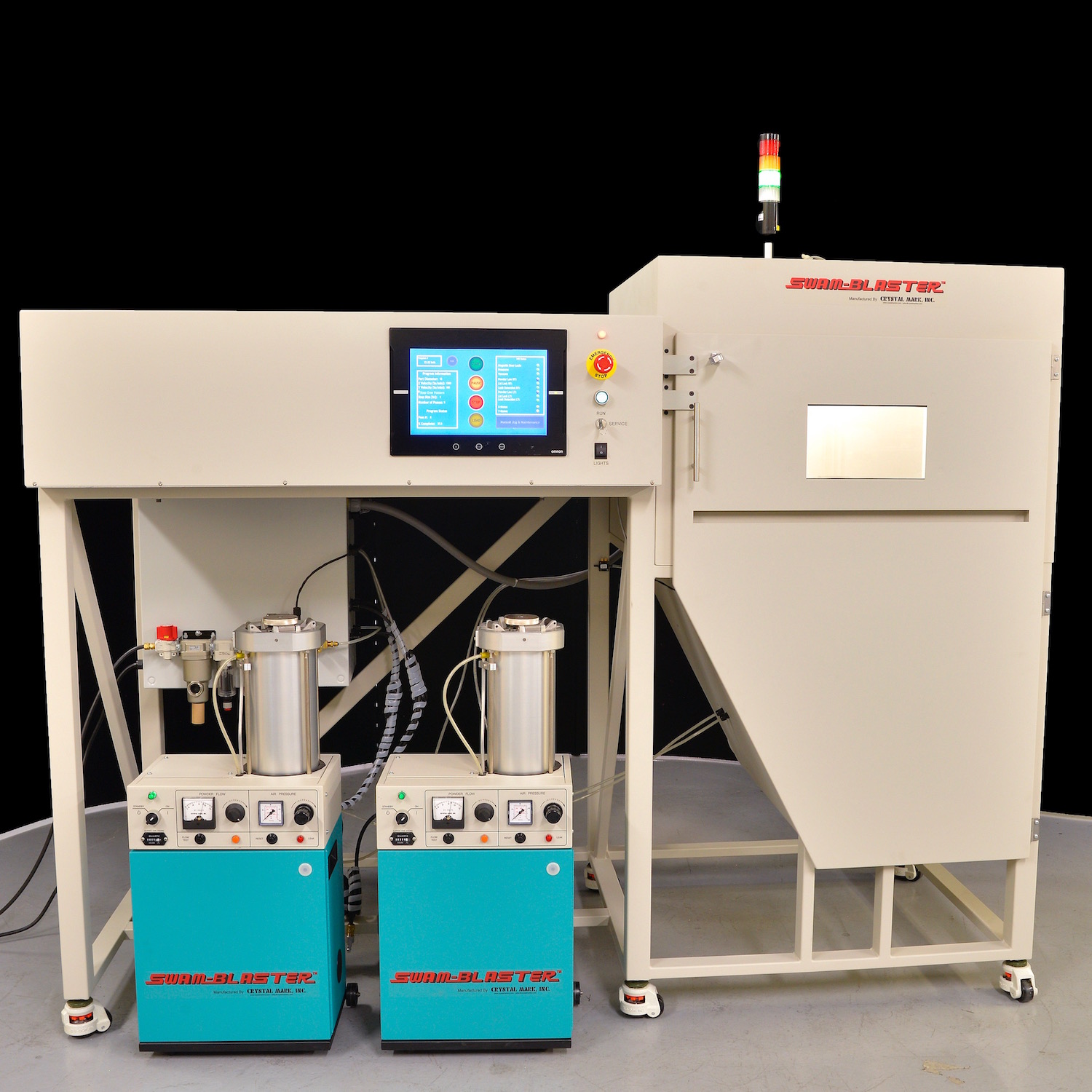

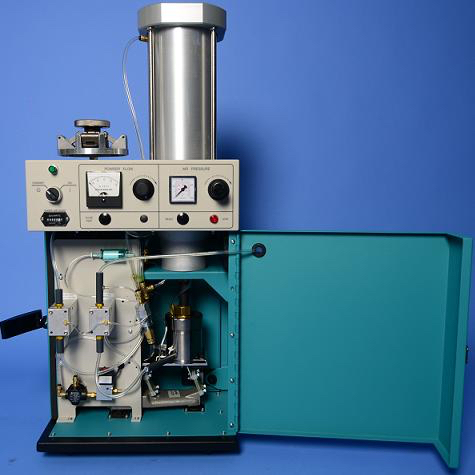

SWAM-BLAST® Model LV-1 Micro Swam Blaster (Large Volume) is best for operating in production lines and in the SWAM® Automated Systems. The LV-1 features independently adjustable powder flow control and air pressure regulation for total process control, an hour meter for SPC monitoring and a leak detection system for the pinch valve assemblies. It holds approximately 20 pounds of Aluminum Oxide, and has a separate mixing powder tank for a consistent powder feed rate from a full tank to an empty tank.



When heavier throughput is required, customers have the the option to select XV-1 SWAM Blaster® as well.



For the Model LV-1, the optimum nozzle range is 0.018” up to 0.060”.



Crystal Mark offers additional options for both LV-1 and XV-1 models:



  • Quick Pinch Valve Assembly
  • Low Powder Sensor to detect low levels of abrasive powder within the auxiliary tank
  • Pulse Shaker to enhance the powder flow from the auxiliary tank to the mixing tank

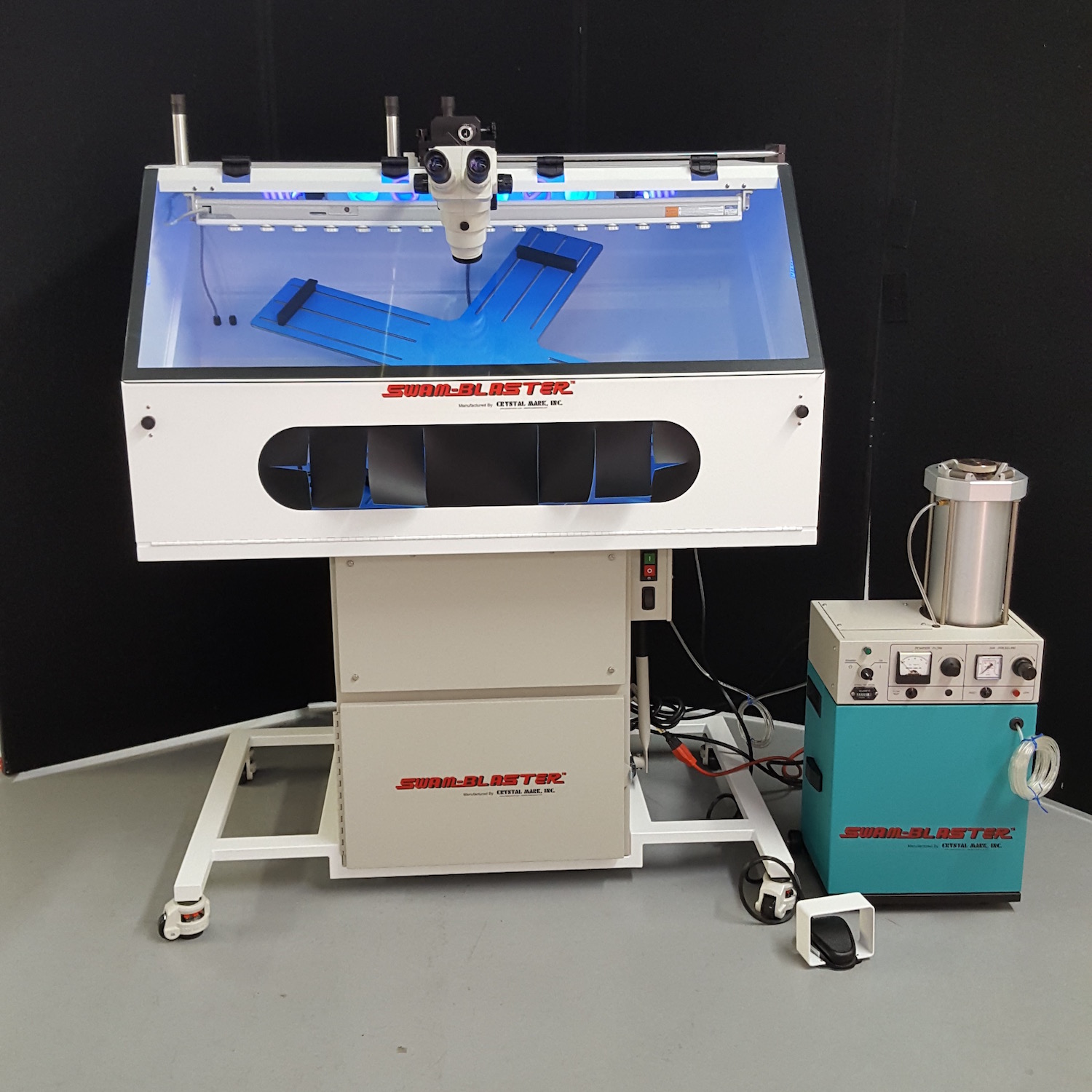

  • Also available are work chambers, dust collectors and air dryers in various configurations to meet the customer’s specific requirements
Item Number #4545-1
Min Air Requirement: 40 psi ( 276 kPa ) Max Air Requirement: 140 psi ( 965 kPa )
Standard Cubic Feet per Min: 6.5 SCFM at 140 psi Weight: 76 pounds ( 34.6 kgs )
Size: 15″ W x 11″ D x 35″H Shipping Weight: 89 pounds ( 40.5 kg )
Shipping Size: 20″ W x 17″ D x 40″ H Other Power: 110V/50Hz, 110V/60Hz & 230V/50/60Hz
