All Products

Standalone Units to Fully Automated Systems

Crystal Mark has well developed processes to capture the customer’s application requirements and to provide fully customized solutions.

For smaller size applications, bench top products provide cost-effective and yet quality micro abrasive processing. For production type industrial applications, Crystal Mark is able to develop fully automated systems with highly controlled, repeatable processes for consistent results.

Work Center

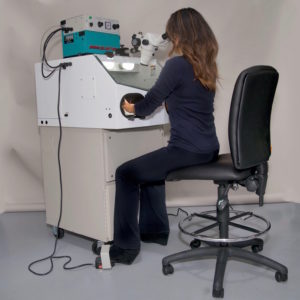

Mobile-Work-Center-with-Caster-MV2-Micro-Sand-Blaster
Work Center with MV2 Micro Sandblaster

Automation: Belt Abrader

Crystal Mark Belt Abrader SWAM C129B - Variable Speed Conveyor Belt - Variable Speed Cam Driven Reciprocator Mechanism
Crystal Mark Belt Abrader SWAM C129B | Variable Speed Conveyor Belt - Variable Speed Cam Driven Reciprocator Mechanism

2-Axes Nozzle Positioning

SWAM CMAB-XV1 | Crystal Mark's Vertical Manufacturing Capabilities for Automation
SWAM CMAB-XV1 | Crystal Mark's Vertical Manufacturing Capabilities for Automation

Silicon Wafer Beveling | B2TV

Automated Silicon Wafer Edge Beveling for B2TV | Micro Abrasive Processing using LV-1 | Two Bevels - Square
Automated Silicon Wafer Edge Beveling | Two Bevels | SWAM Model B2-TV MKIII | Micro Abrasive Processing using LV-1 SWAM Blasters

SWAM BLASTERS®: Heart of Crystal Mark Technology

Crystal Mark’s SWAM BLASTER® Micro Sandblasters provide complete process control with adjustable air pressure regulation, and independent powder flow regulation. Customers have options to select a sand blaster based on their specific application requirements.

AERO-Blaster™

Micro SWAM BLASTER™ | AERO-Blaster™
Micro SWAM BLASTER™ | AERO-Blaster™

AERO-Blaster™  runs on 6V rechargeable battery and dry air supply. It is ideal for small applications.

EV-2 Series

SWAM BLASTER™ Models EV-2, EV-2L
SWAM BLASTER™ Models | EV, MV Series

The EV Series SWAM BLASTERS™ are “Economical Version” micro sandblasters ideal for moderate applications.

MV2 Series

MV/EV Series SWAM Blaster + TURBO-Max™ Work Chamber
MV/EV Series SWAM Blaster + TURBO-Max™ Work Chamber

The MV (Maximum Versatility) Series Models have carbide line fittings, and also tilting powder tank for easy change of abrasives.

LV, XV SWAM Blasters

Crystal Mark Swam Blasters | LV-1, XV-1
Crystal Mark SWAM Blasters | LV-1, XV-1

The LV-1 (Large Volume) and XV-1 (Xstream™ Volume) models are designed for production lines, and automated systems.

Work Chambers

The purpose of a work chamber is to contain the spent abrasive particles ejected from the micro sandblaster, make the object to be cleaned visible, and protect the user from inhaling particles.

Crystal Mark has refined the design of work chambers for optimum productivity & ergonomic experience for operator.

TURBO-Cab™

TURBO-Cab™ Work Chamber
TURBO-Cab™ Work Chamber

TURBO-Station™

TURBO-Station™ with EV-2 SWAM BLASTER™
TURBO-Station™ + SWAM Blaster™ (EV, MV Series)

TURBO-Max™

Crystal Mark Turbo MAX work chamber
Crystal Mark Turbo MAX work chamber

New WORK CENTER™

Ergonomic Work Center with MV2 Micro Sandblaster at the Top
Ergonomic Work Center with MV2 Micro Sandblaster at the Top

DESK TOP WORK STATIONS with BUILT-IN DUST COLLECTION

CCR-MAX-MV2L | Control ESD | Precision, Accuracy, Consistent Repeatability
CCR-MAX-MV2L | Control ESD | Precision, Accuracy, Consistent Repeatability for Conformal Coating Removal (CCR)

Custom Design: Crystal Mark R&D, Machining Capabilities

Work Cell Custom Designed for Specific Application Requirements | XV-1 Micro Sand Blaster | Custom Manufactured Fixtures
Work Cell Custom Designed for Specific Application Requirements | XV-1 Micro Sand Blaster | Custom Manufactured Fixtures
