Manufacturer and Supplier of Micro Abrasive Processing Equipment and Services

Micro Abrasive Processing is accomplished by propelling a finely graded abrasive powder into a stream of compressed air, through an abrasive resistant hose and out a miniature nozzle manually or automatically positioned at the work piece.

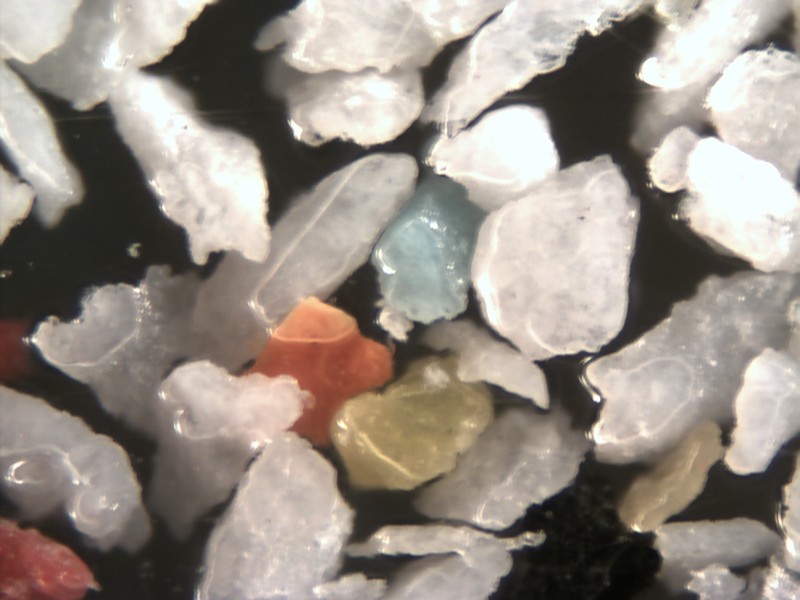

There are 5 functions in micro sandblasting that control the process.  They are:  1) Air Pressure  2) Nozzle Diameter 3) Distance of the Nozzle from the Work piece  4) Powder Flow Rate and  5)Type of Abrasive Powder used.

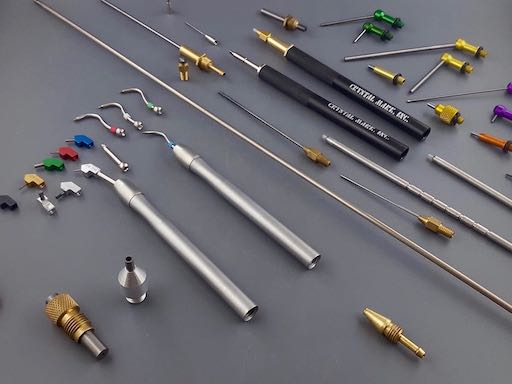

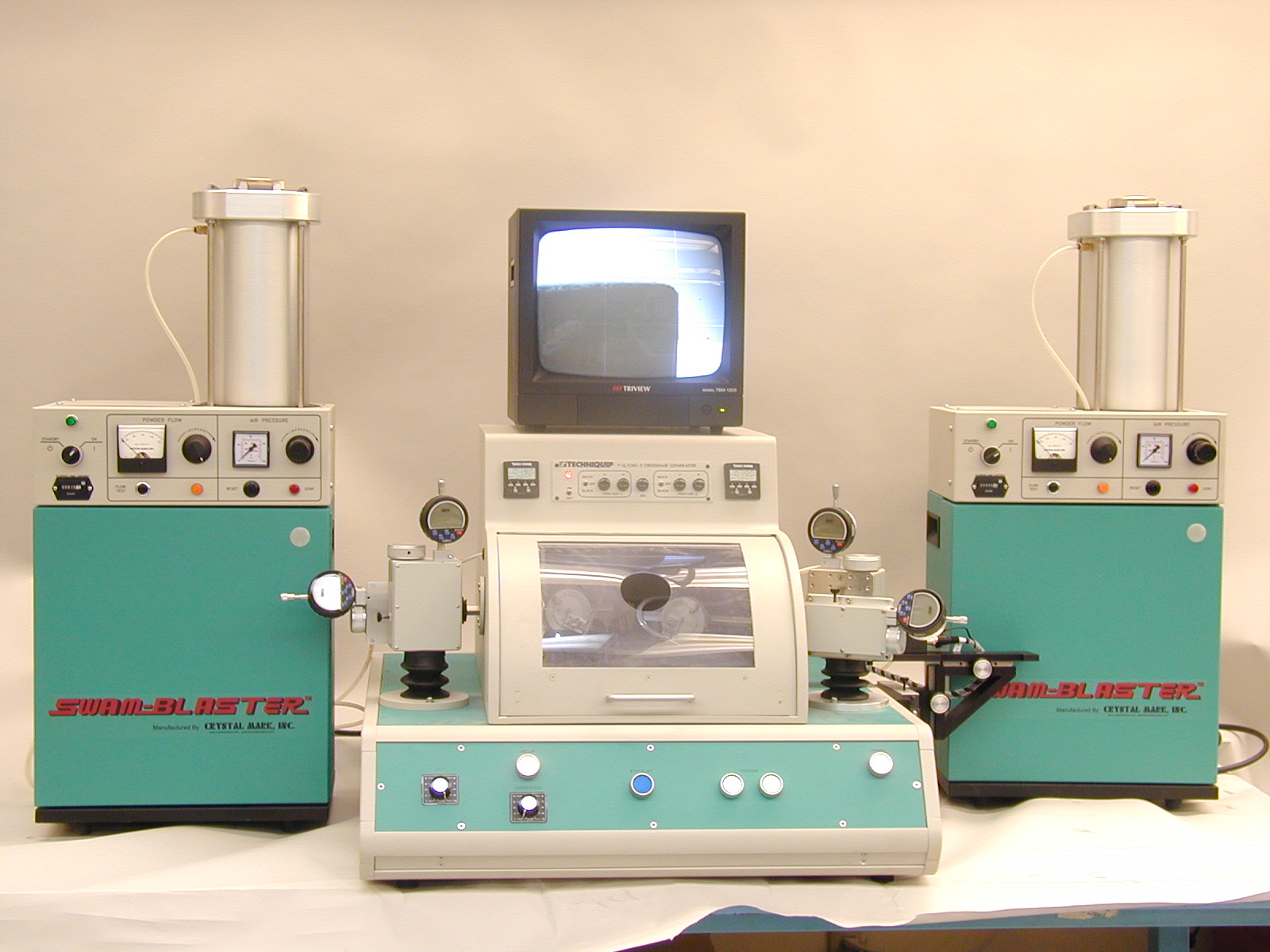

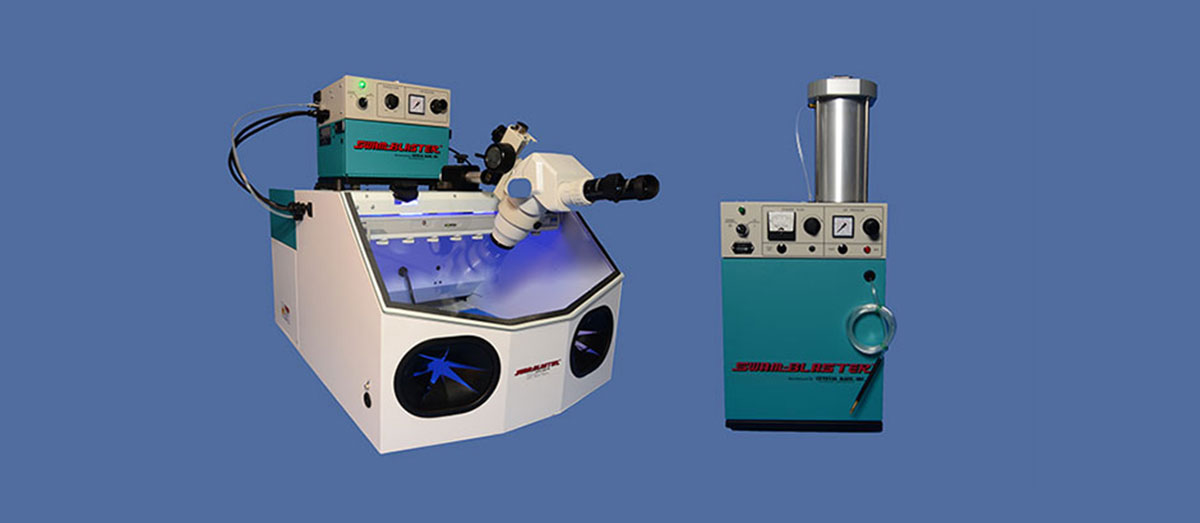

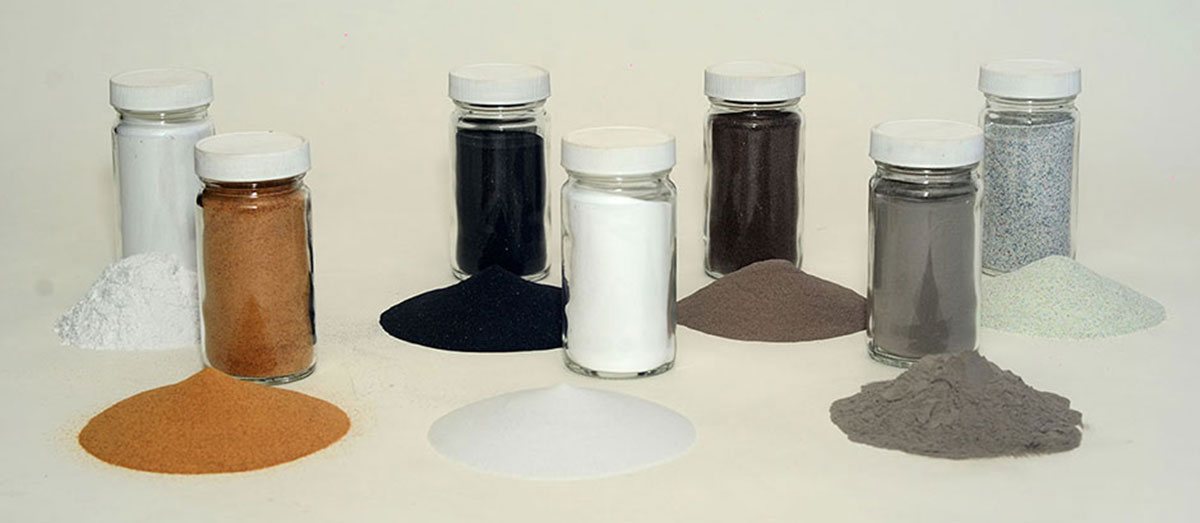

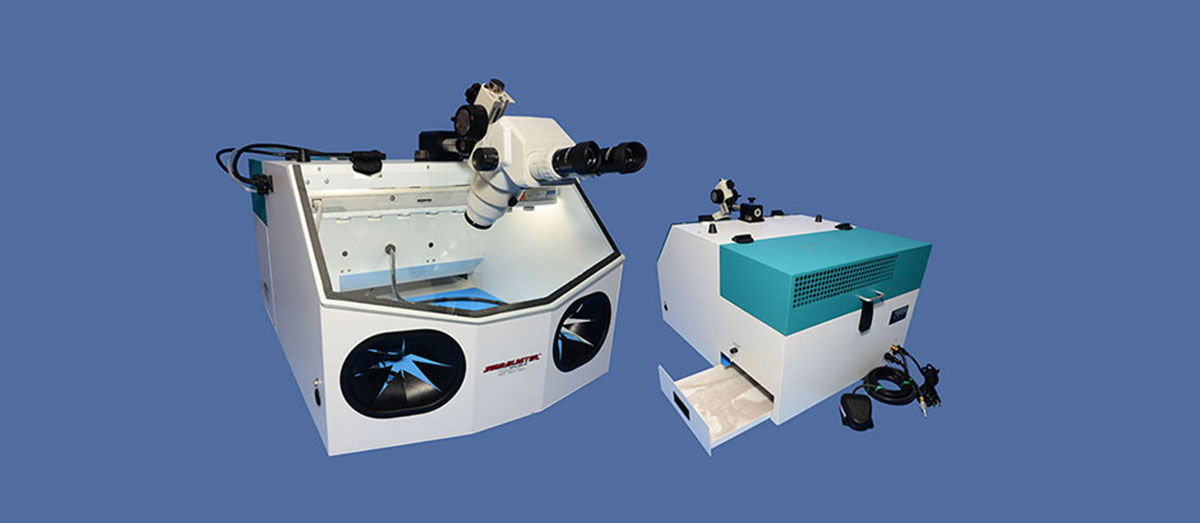

The SWAM BLASTER® line of micro sandblast machines allows complete process control by offering adjustable air pressure regulation, independent powder flow regulation, nozzle assortments from .006″ to .090″ standard (custom nozzles are available), a wide variety of precisely graded micro abrasive powders and easily interchangeable powder orifice plates.

What makes a micro sandblasting system so effective for cutting, texturing, etching, cleaning, drilling, de-burring and so much more is the ability to propel the abrasive powder at various velocities.  The higher the air pressure and the smaller the nozzle diameter, the faster the abrasive particle is propelled at the work piece allowing optimum abrading results.  When a less aggressive result is desired, the air pressure can be reduced, the amount of powder in the air stream can be adjusted and/or the nozzle diameter can be increased to slow down the velocity of the abrasive particle thus causing less material removal upon impact.

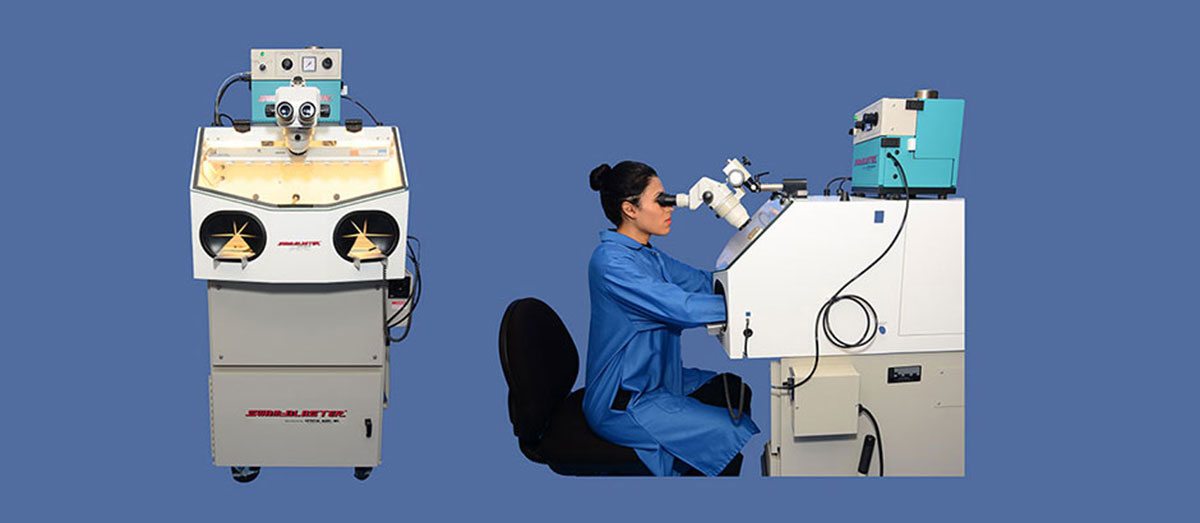

Crystal Mark, Inc. has specialized in the field of micro abrasion technology for decades. We are involved in all aspects of Micro Abrasive Processing. We are automaters, manufacturers and end users. We offer manual, automated and custom systems as well as Job Shop Services to accommodate a number of diverse applications. Working together with our customers as both manufacturers and end users, we have developed a full product line that enhances micro abrasion technology in more than one industry. As a result, we are the recognized leader and innovator in micro abrasive processing.

Applications

Play
Prev
Next

Crystal Mark applications include:

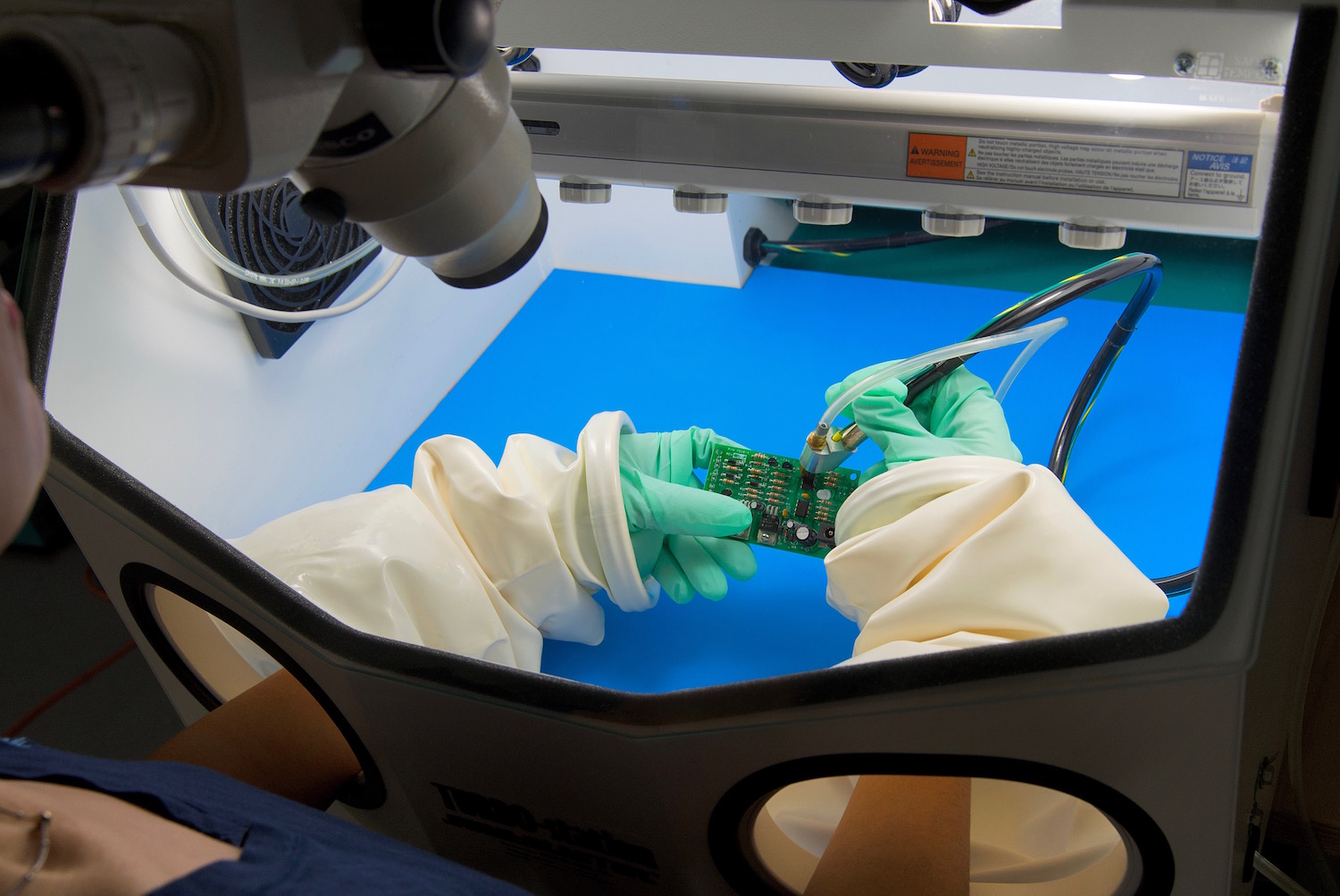

  • Conformal Coating Removal
  • Parylene Removal
  • Glass Engraving
  • Cleaning Fossils
  • Precision Deburing
  • Art Conservation
  • Cleaning Metal on Ceramics

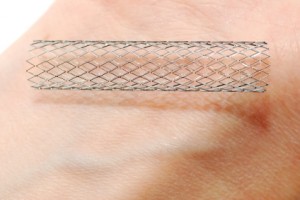

  • Medical Applications

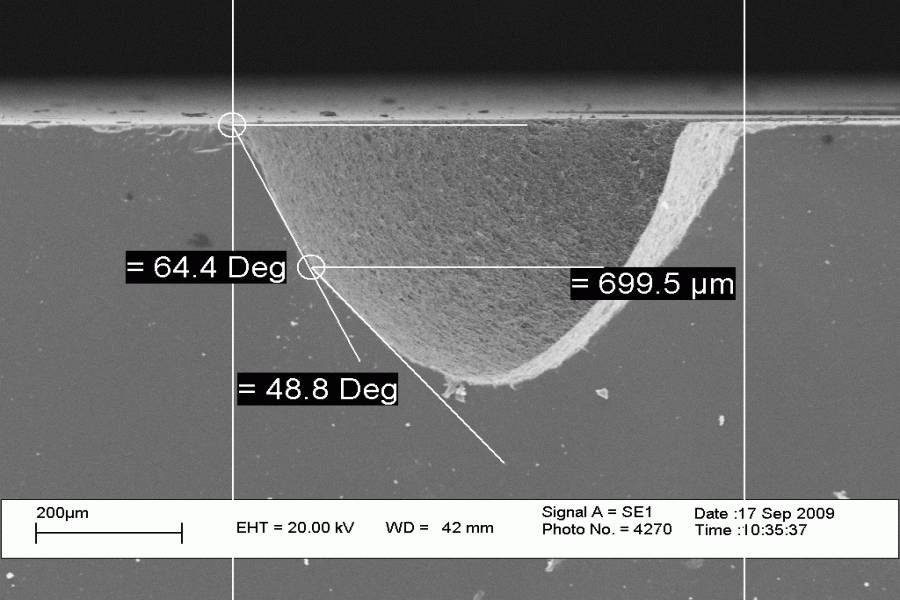

  • Wafer Cutting
  • Wafer Slot Hole Drilling
  • Drilling EDM Recast Removal
  • Museums / Antiquities Restoration

Services

Play
Prev
Next

Crystal Mark services include:

  • Job Shop Services
  • Custom built machines
  • Abrasive Lab
  • Process Development
  • Consultation Services
  • Green Initiative

Industries

Play
Prev
Next

Crystal Mark industries served:

  • Electronic Industry
  • Aerospace Industry
  • Medical Manufacturing
  • Semiconductor Industry
  • Fossil and Mineral Industry
  • Precision and Machining Industry
  • Museums / Antiquities Industry

Featured Videos

Acrylic

Acrylic Removal

“Conformal coating removal using ESD safe micro sandblasting”

Rotary

Rotary Abrader Video

“Rotary Abrader for texturing and de-burring dental implants and surgical bone screws.”

Egg

Egg Carving Video

“Fine detail possible using micro abrasive sandblasting.”

More Videos

Memberships & Affiliations

Play
Prev
Next

Customers & Industries Served

  • NASA
  • Boeing
  • St. Jude Medical
  • USA Army
  • Government of South Korea
  • J. Paul Getty Museum
  • Apple Inc.
  • LA County Museum
  • Vishay
  • And Many More
